2.56kwh/460w solar

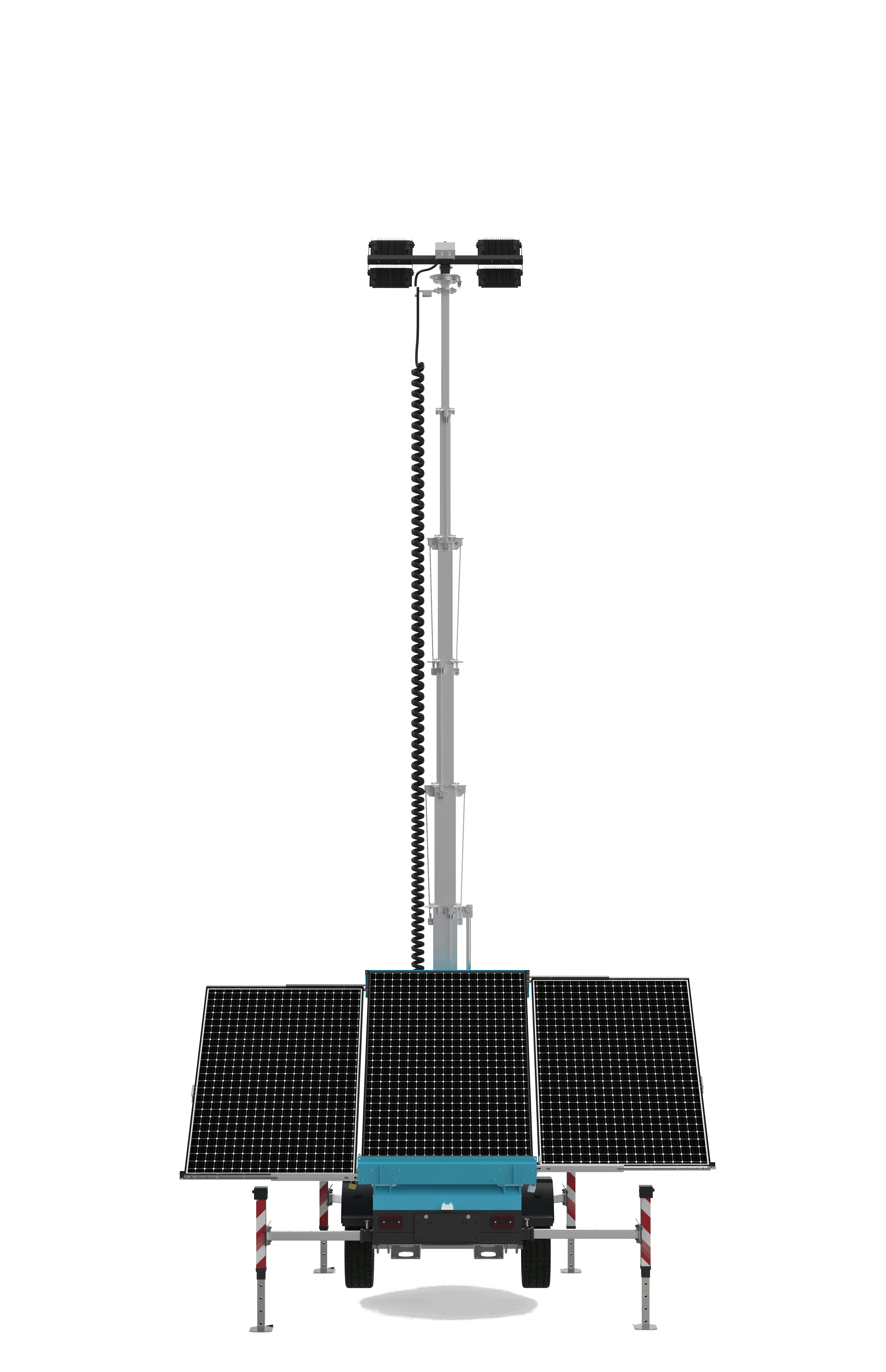

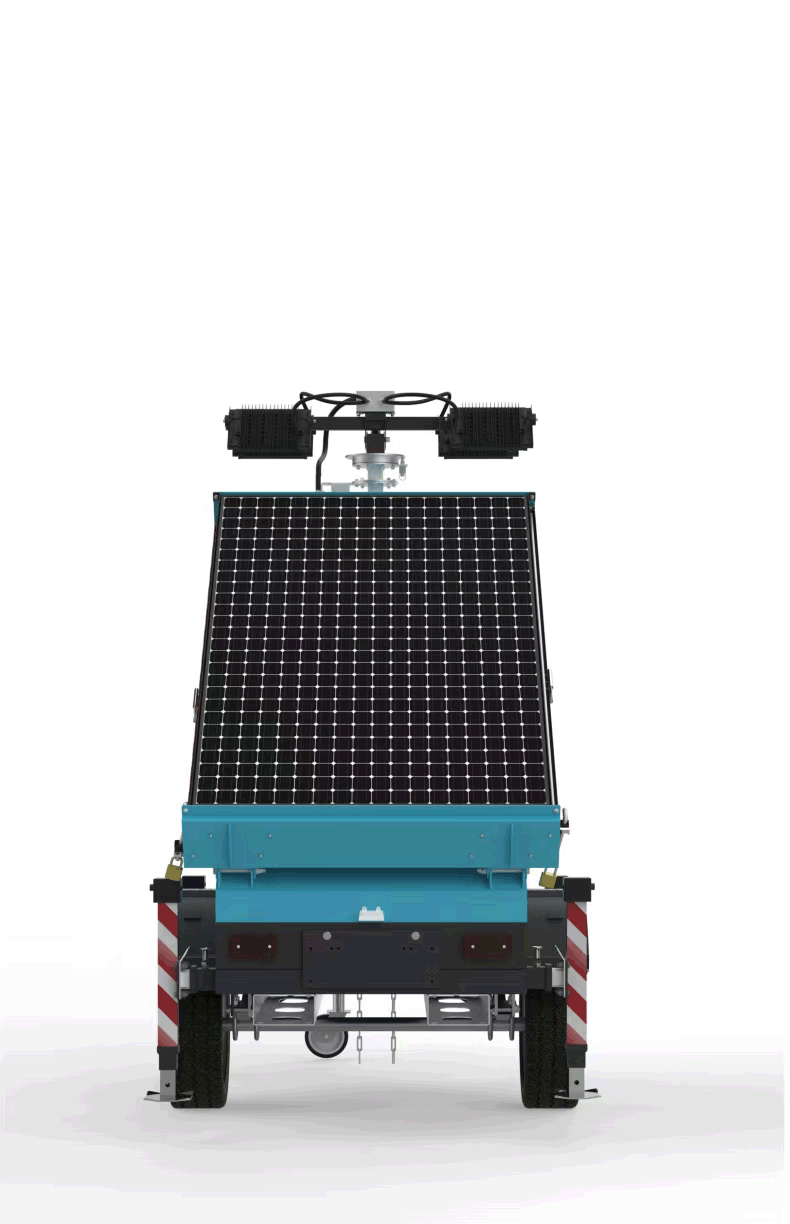

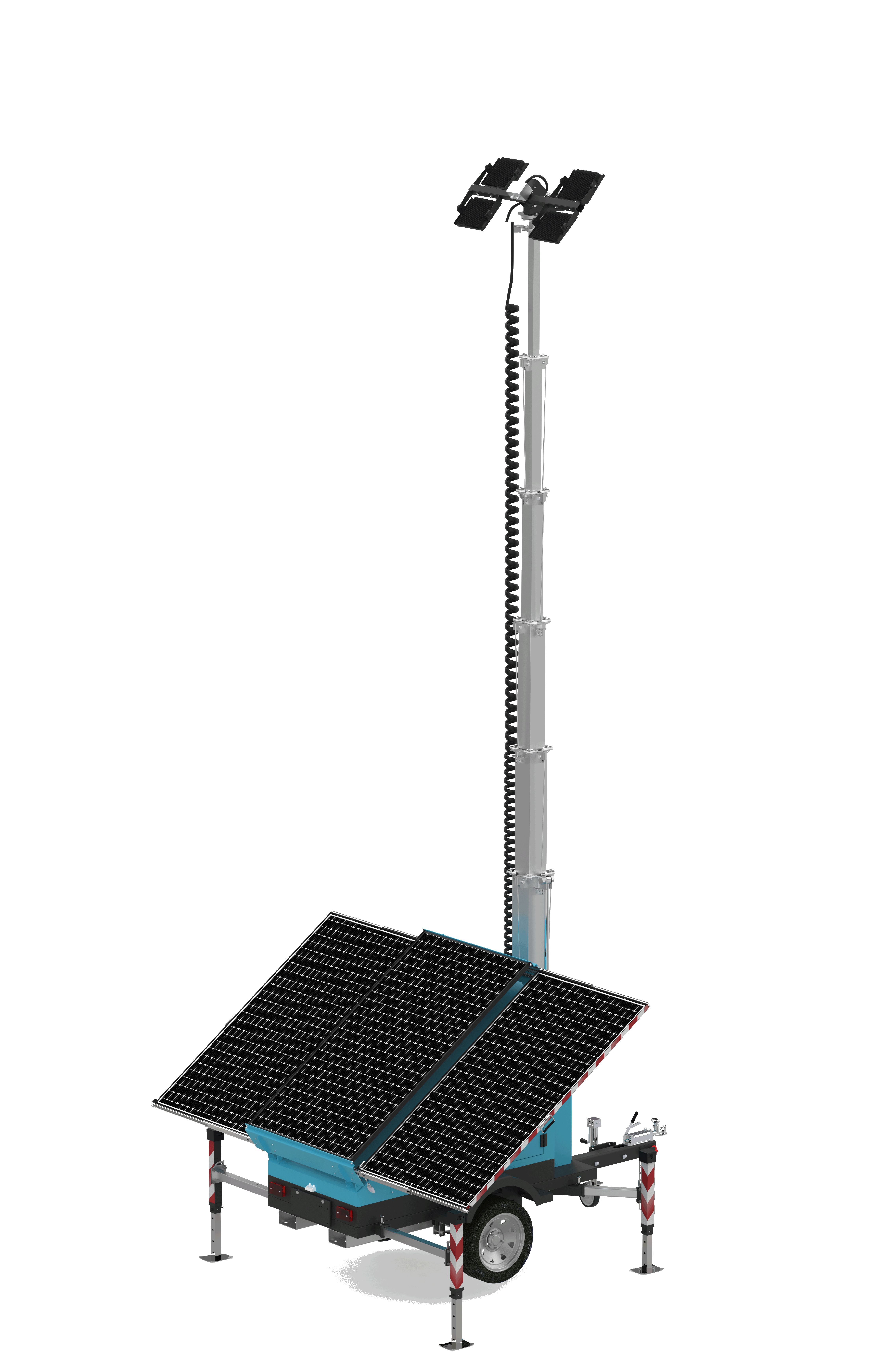

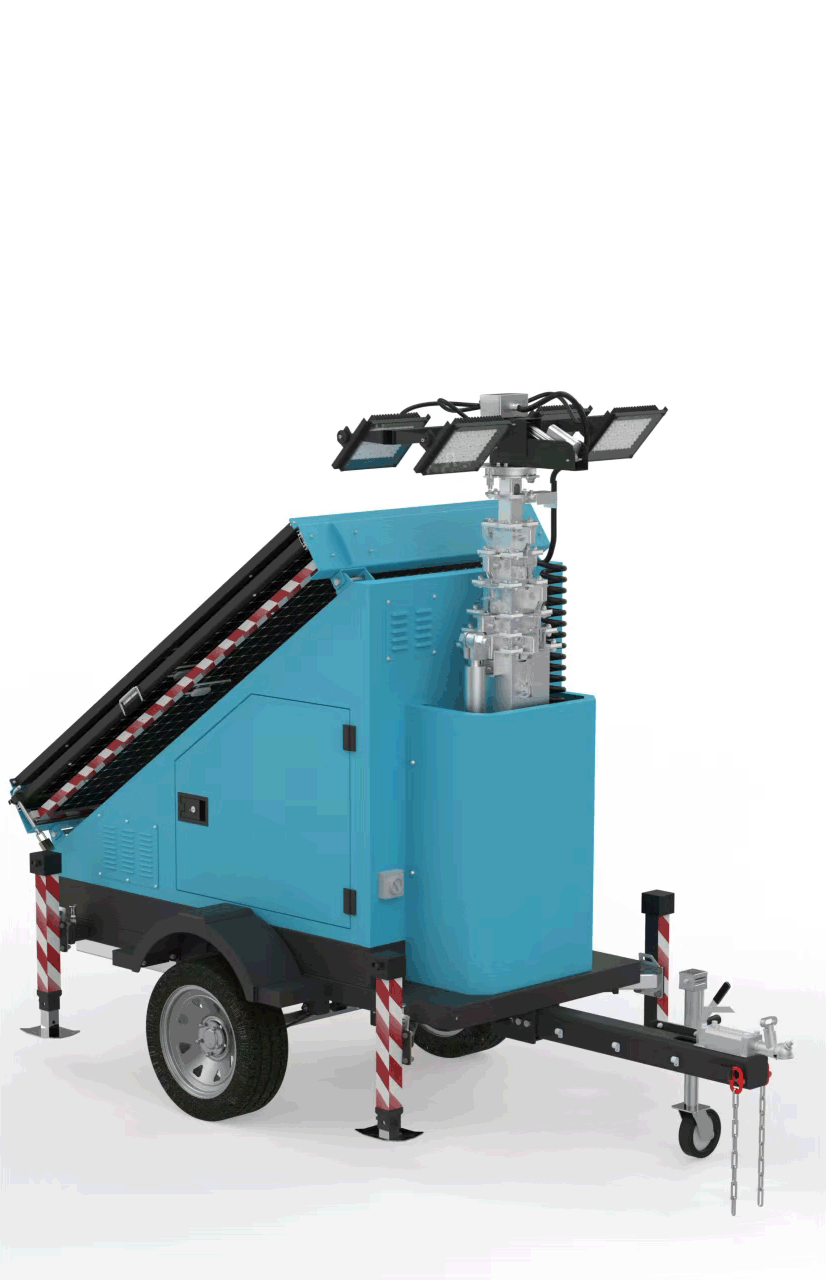

Mounted solar-powered light tower
The NV1500 stands out with high-performance LED lighting and advanced solar technology. It’s built for long-lasting operation, making it the perfect solution for large-scale construction or mining projects.
| Lighting System | 4*120W LED Floodlights |
| Light Output | 96000 Lumens, 200LM/W |
| Lighting range | 1783.5m² @5Lux |
| Spring Cables | 4*2.5mm² +6*1.5mm² |
| Solar Panel Type | Monocrystalline Silicon |
| Solar Panel Wattage | 3*500 W |
| PV Controller | Victron MPPT 50A, 95% efficiency |
| Battery Type | LiFePO4 |
| Battery Pack | 1*314 AH, DC 51.2V |
| Battery Capacity | 16.1 KWH |
| System Voltage | DC 51.2V |
| Maximum Height | 7.5 Meters |
| Wind Resistance Rating | 117 KM/H |
| Lifting System | Manual / Electric/Hydraulic |
| Axle Qty | Single |
| Tyre and Rim | 14 Inch |
| Support Leg | 4pcs, Manual |
| Tow Hitch | 50 mm Ball/ 70 mm Ring |
| Working Temperature | -20℃-+60℃ |
| Charging Time | 10 Hours |
| Running Time | 17 Hours |
| Optional | AC Battery Charger, Inverter |
| Transport Dimensions | 2200*1500*2300 mm |
| Operating Dimensions | 3650*3500*6500 mm |
| Gross Weight | 1200 KG |
| Container Loading | 40 GP: 7pcs |
