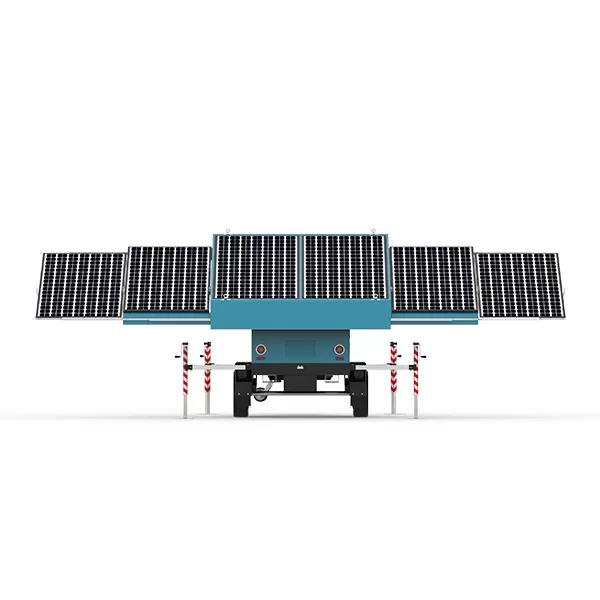

30.72kwh/2610w solar
Solar pod generator trailer
The NV1740 delivers unparalleled lighting performance with superior energy storage and durable construction. This solar light tower is tailored for remote operations, providing reliable light without compromising sustainability.
| Output Voltage (V) | 110/230 V |
| Frequency | 50/60 HZ |
| Battery Capacity | 20.48 KWH |
| Solar Panel Type | Monocrystalline Silicon |
| Solar Panel Wattage | 4*435 W |
| PV Controller | Victron MPPT 60A, 95% efficiency |
| Battery Type | LiFePO4 |
| Battery Pack | 4*100 AH, DC 51.2V |
| Communication interface | RS-485 |
| Output Port | 1*16A AC + 2*10A AC + 1*5V USB |
| Axle Qty | Single |
| Tyre and Rim | 14 Inch |
| Support Leg | 4 pcs, Manual |
| Tow Hitch | 50 mm Ball / 70 mm Ring |
| Working Temperature | -20°C-60°C |
| Battery Charging | Solar / Mains |
| Charging Time | 15 Hours |
| Running Time | 8 hours with 2 kw load, 20 hours with 0.8 kW load |
| Optional | Diesel Generator, Wind Turbine |
| Transport Dimensions | 2200*1500*2200 mm |
| Operating Dimensions | 5200*3550*2200 mm |
| Gross Weight | 1400 KG |
| Optional | Inverter Power 1KW-5KW |
| AC Battery Charger | 2KW |
