46.08kwh/3480w solar

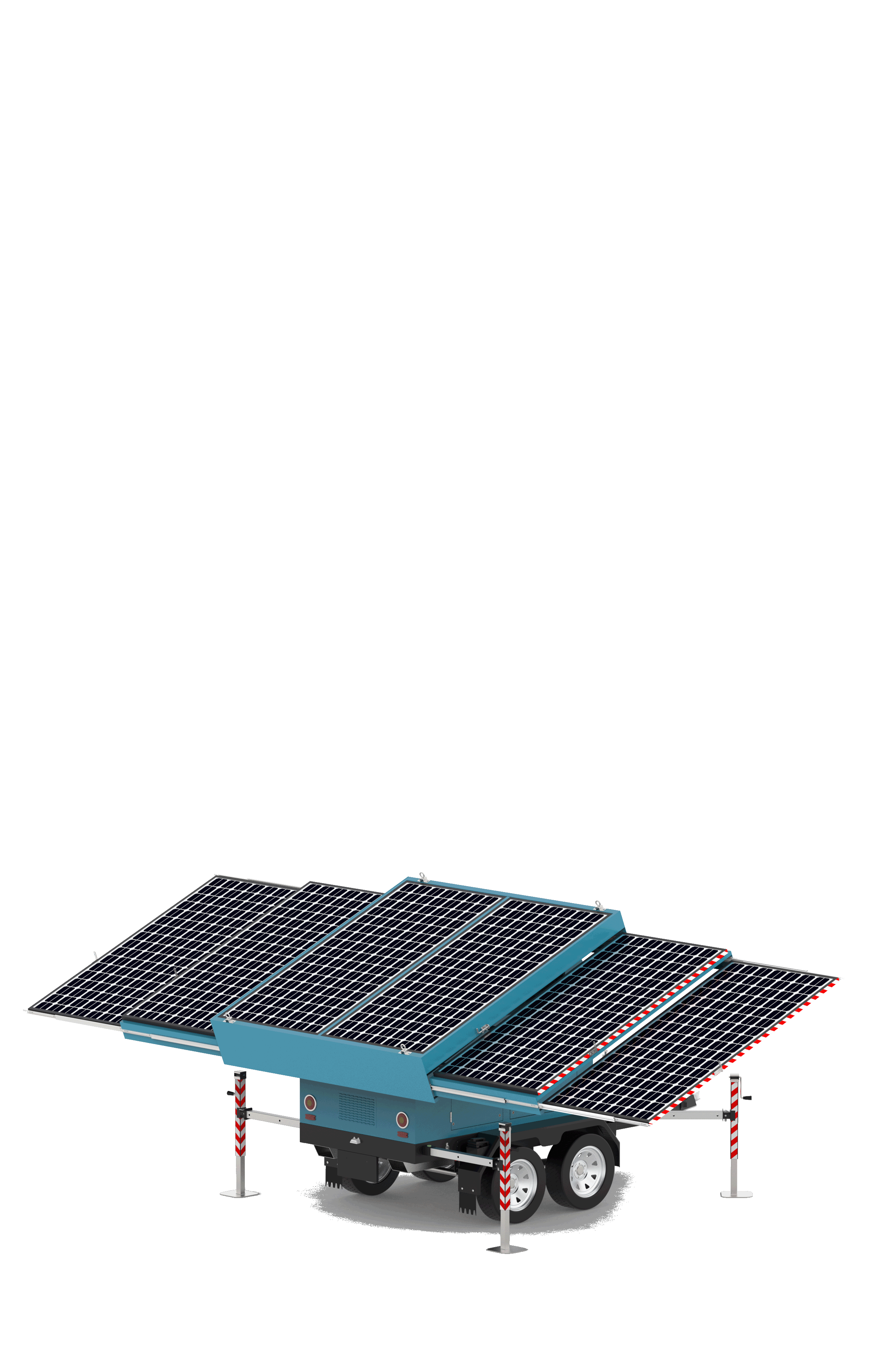

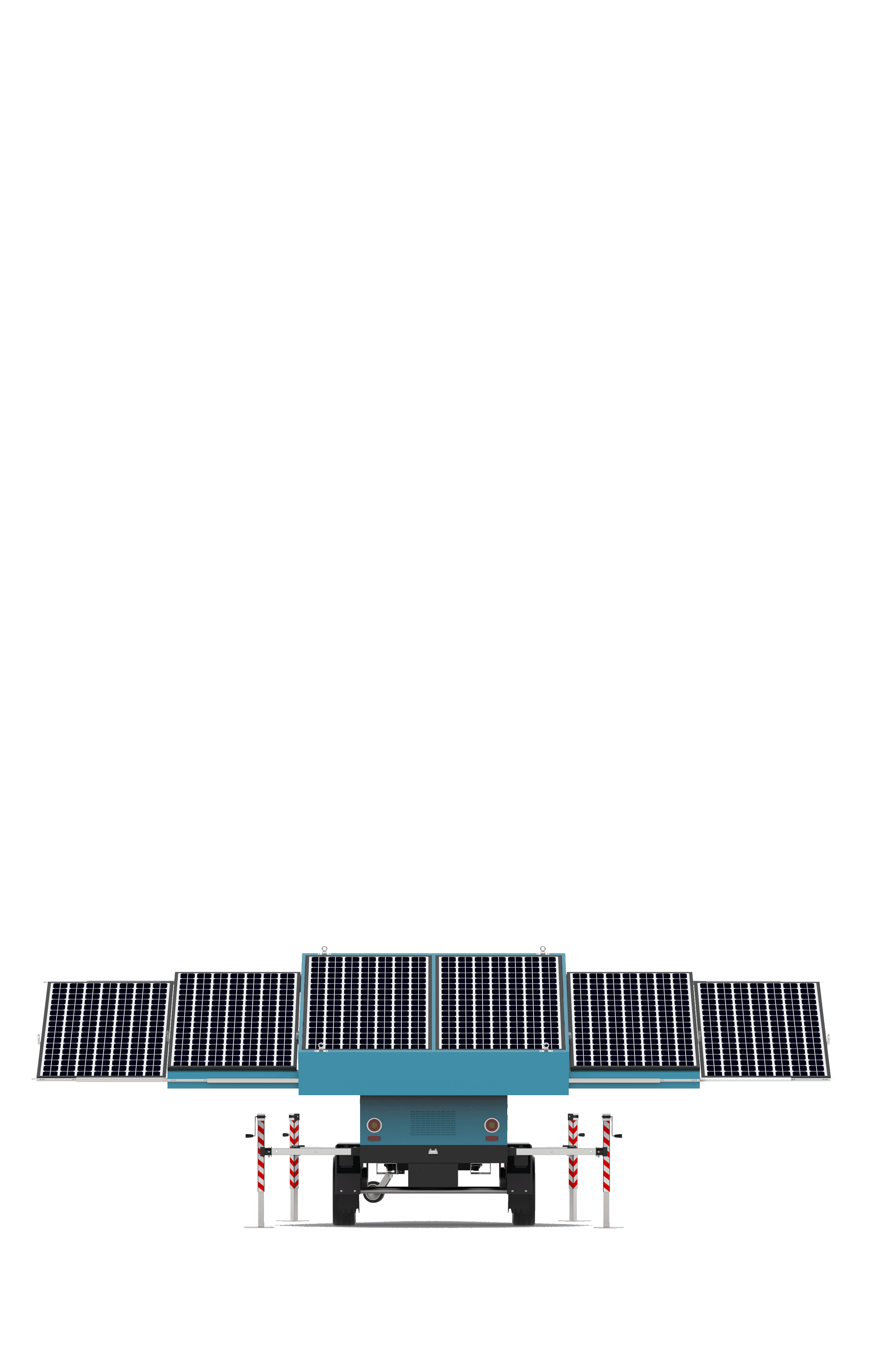

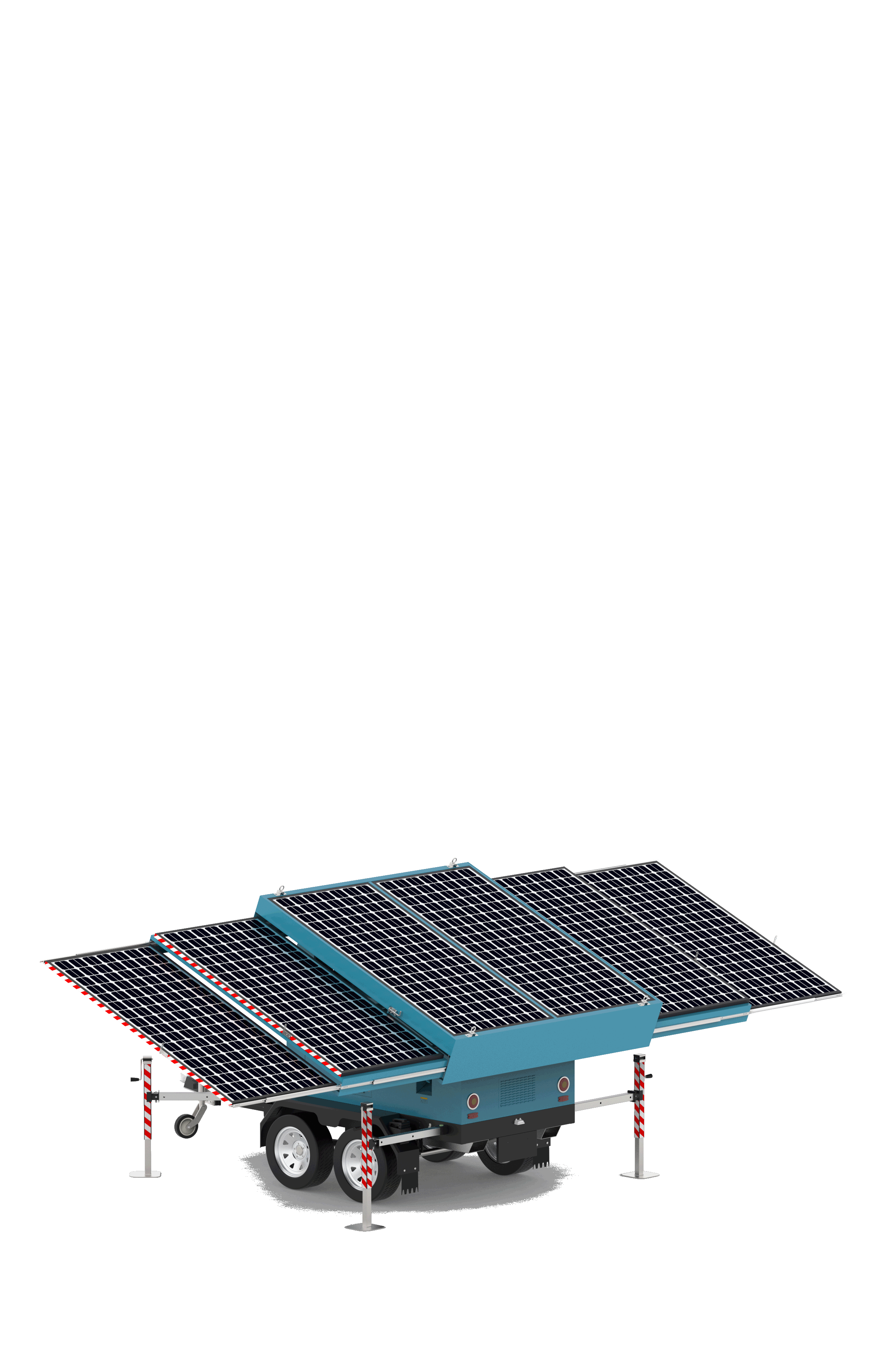

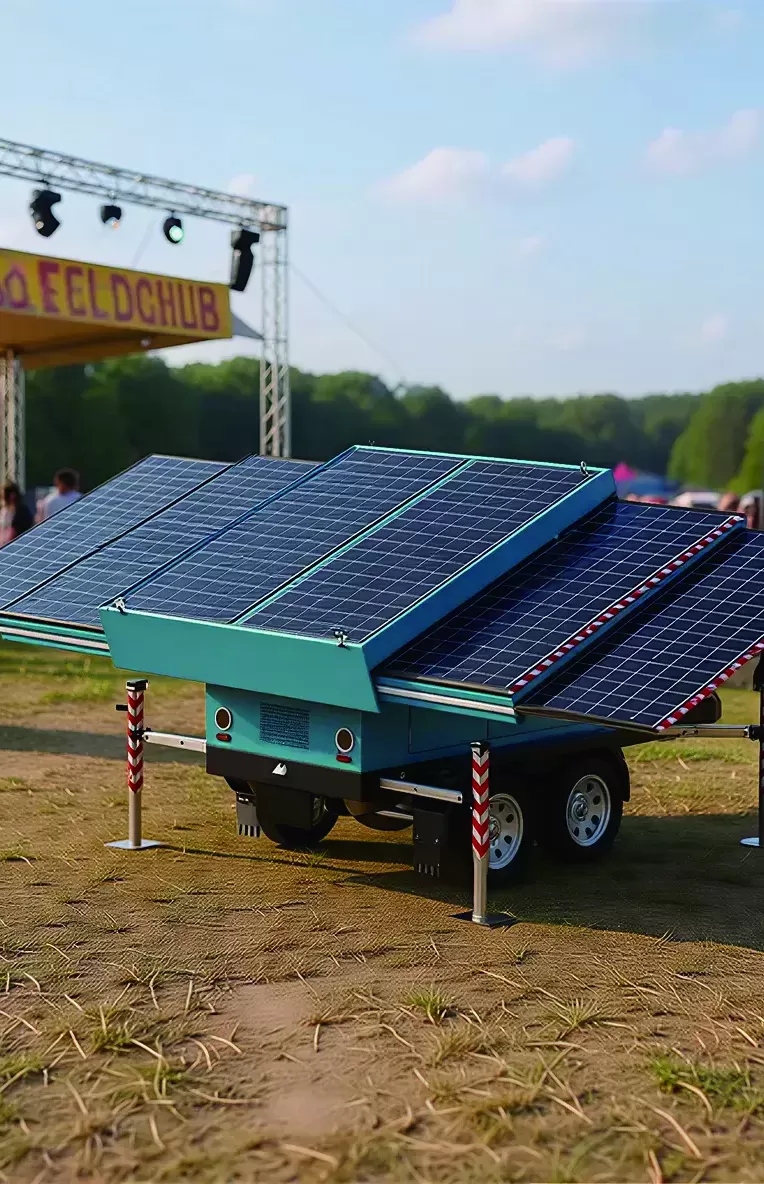

Solar power system trailer
| Output Voltage (V) | 110/230 V |
| Frequency | 50/60 HZ |
| Battery Capacity | 30.72 KWH |
| Solar Panel Type | Victron Monocrystalline Silicon |
| Solar Panel Wattage | 6*435 W |
| PV Controller | MPPT 80 A, 95% efficiency |
| Battery Type | LiFePO4 |
| Battery Pack | 6*100 AH, DC 51.2 V |
| Communication Interface | RS-485 |
| Output Port | 1*16A AC + 2*10A + 1*5V USB |
| Axle Qty | Double |
| Tyre and Rim | 15 Inch |
| Support Leg | 4 pcs, Manual |
| Tow Hitch | 50 mm Ball / 70 mm Ring |
| Working Temperature | -20°C-60°C |
| Battery Charging | Solar / Mains |
| Charging Time | 15 Hours |
| Running Time | 13 hours with 2 kW load, 30 hours with 0.8 kW load |
| Optional | Diesel Generator, Wind Turbine |
| Transport Dimensions | 3000*2350*2450 mm |
| Operating Dimensions | 5100*7000*2400 mm |
| Gross Weight | 2300 KG |
| Optional | Inverter Power 1KW-5KW |
| AC Battery Charger | 2.7KW |
