30.72kwh/2610w solar

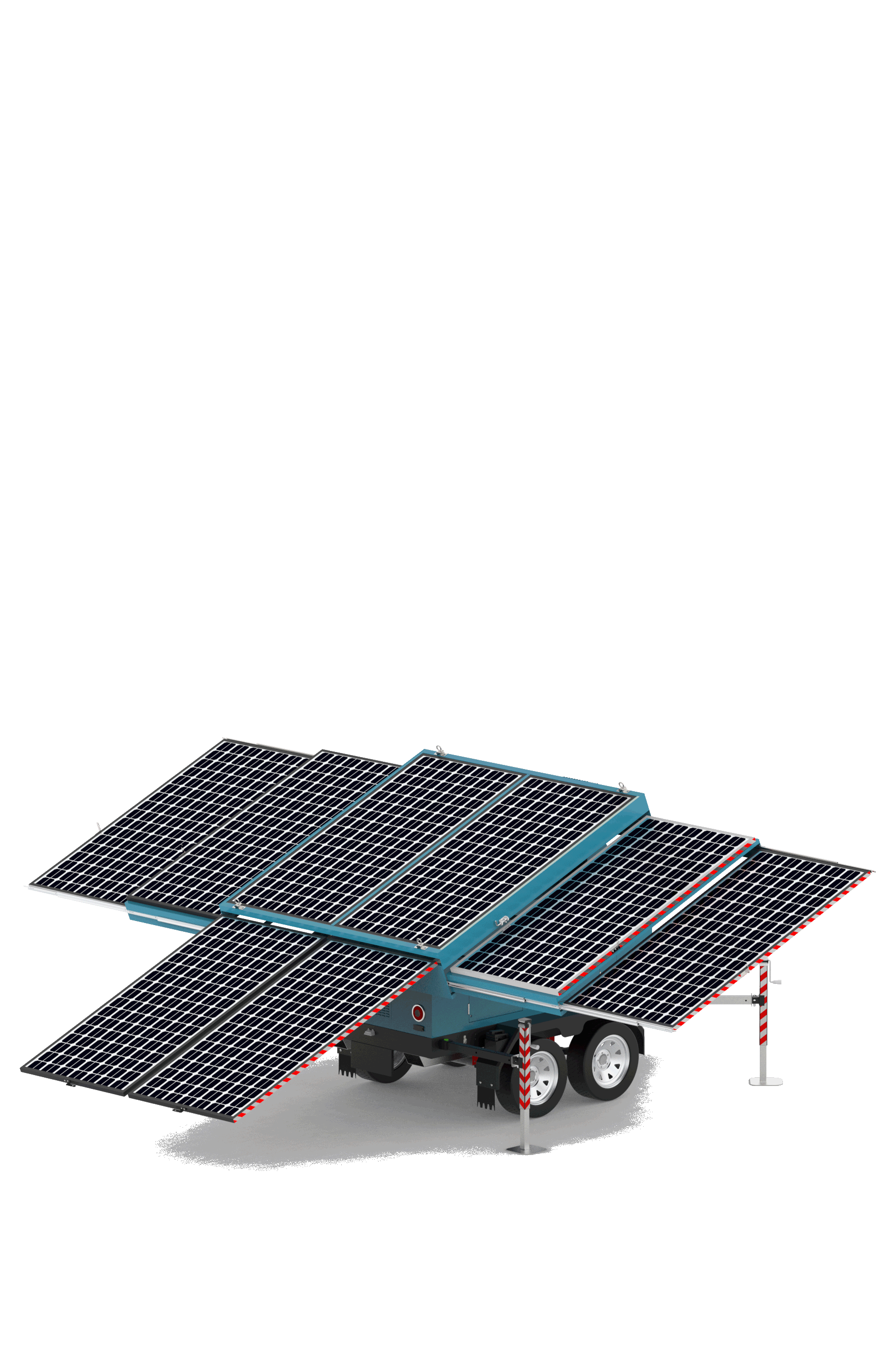

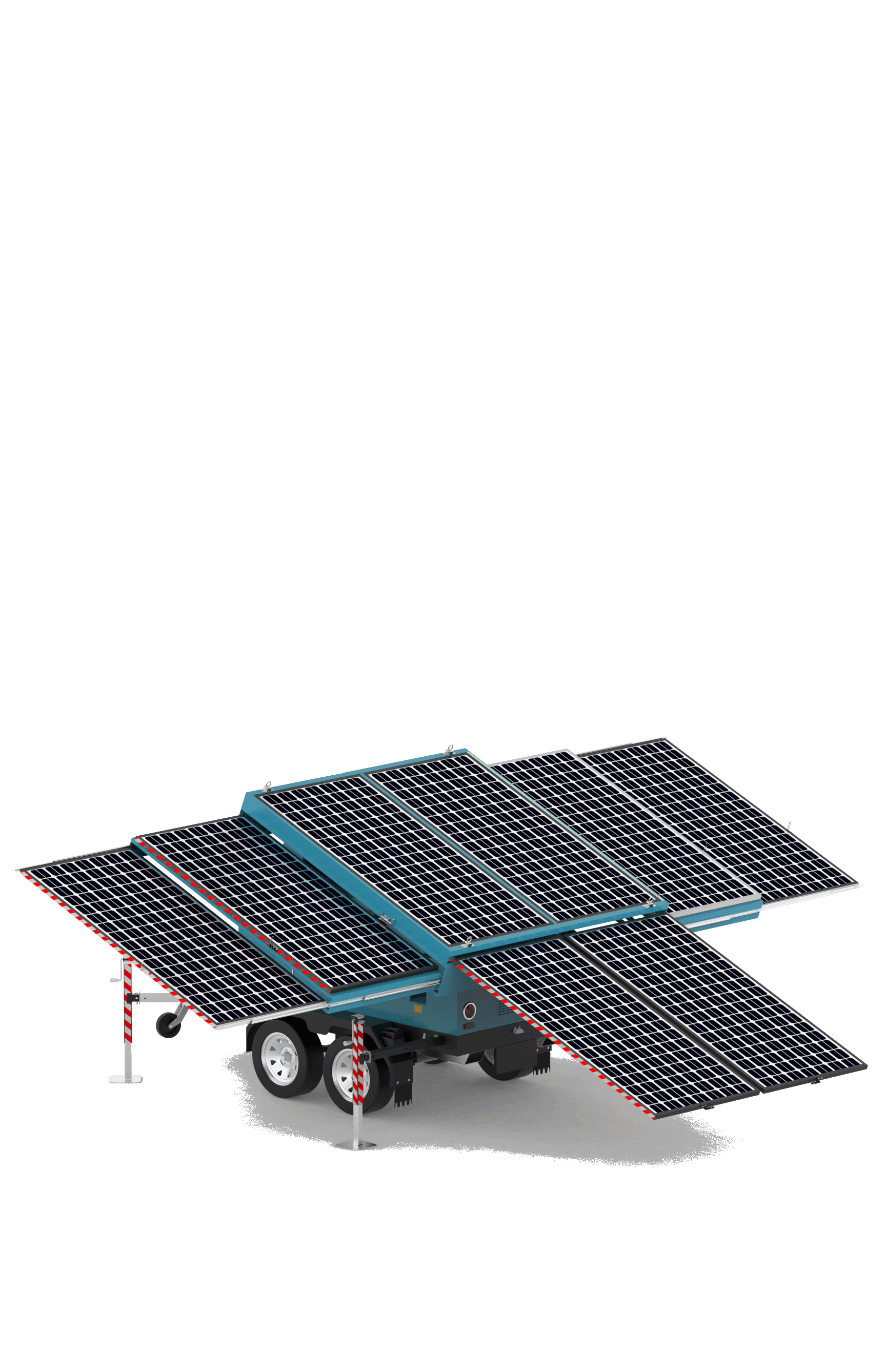

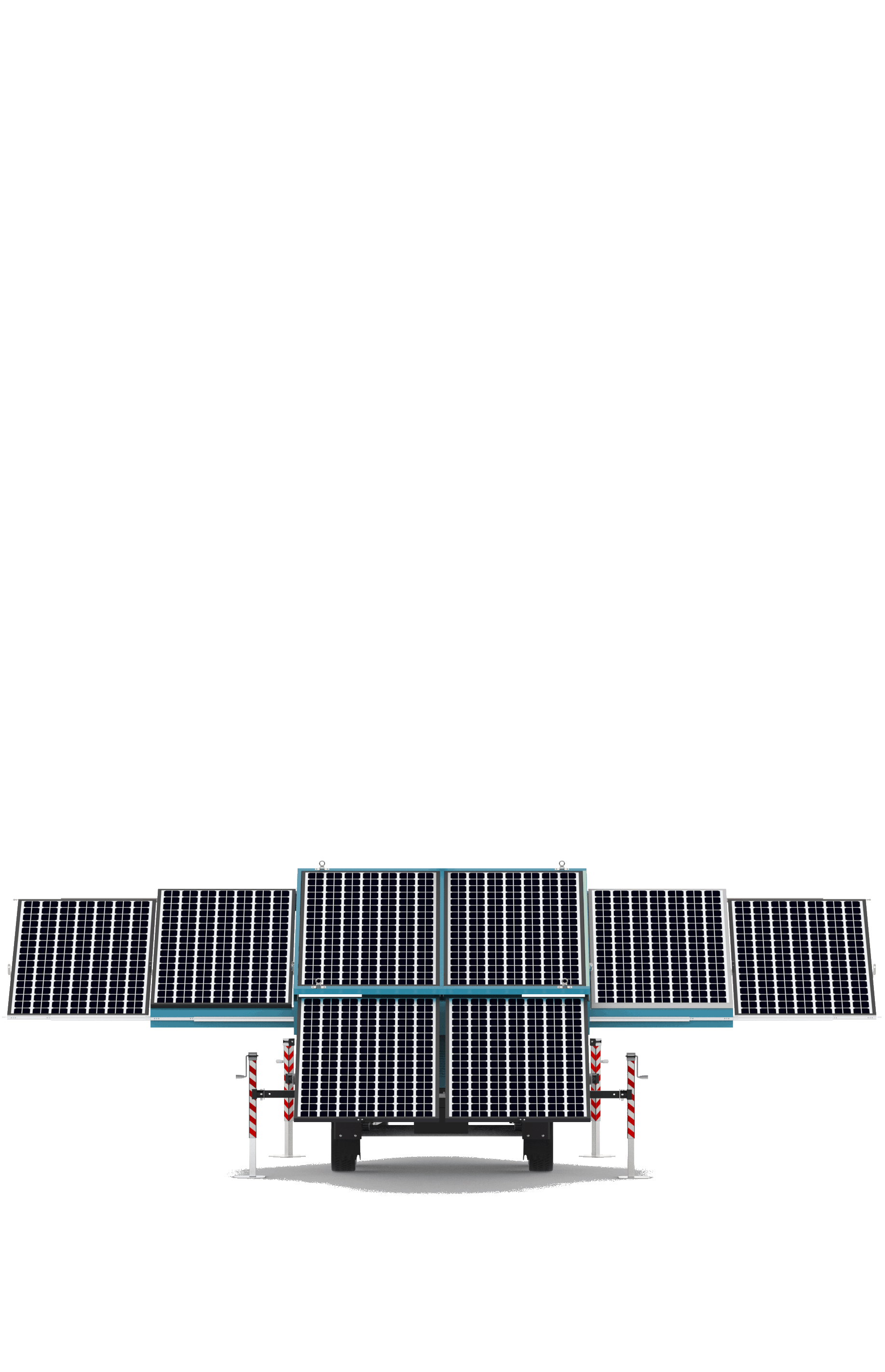

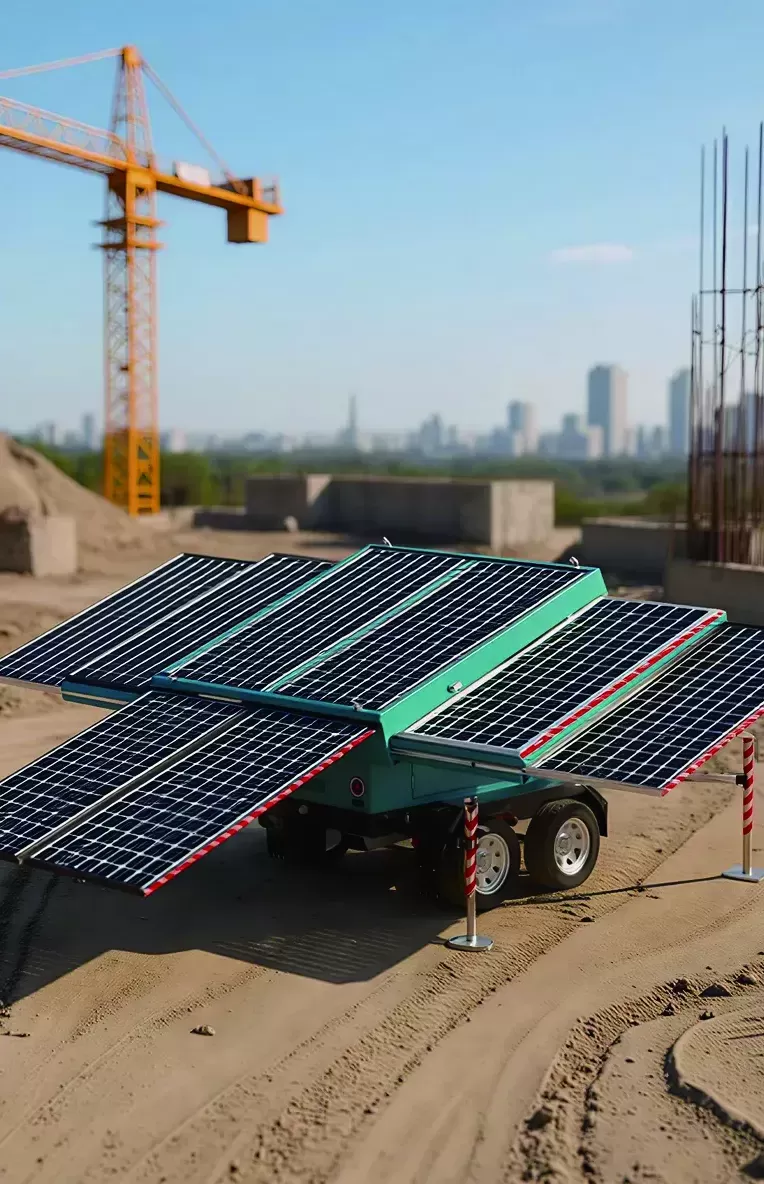

Solar pod generator trailer
Designed for maximum output, the NV3480 is the ultimate solar-powered lighting solution. With its advanced LED technology and extensive solar capacity, it caters to demanding industrial and outdoor environments.
| Output Voltage (V) | 110/230 V |
| Frequency | 50/60 HZ |
| Battery Capacity | 46.08 KWH |
| Solar Panel Type | Monocrystalline Silicon |
| Solar Panel Wattage | 8*435 W |
| PV Controller | Victron MPPT 100 A, 95% efficiency |
| Battery Type | LiFePO4 |
| Battery Pack | 9*100 AH, DC 51.2 V |
| Communication interface | RS-485 |
| Output Port | 1*16A AC + 2*10A AC + 1*5V USB |
| Axle Qty | Double |
| Tyre and Rim | 15 Inch |
| Support Leg | 4 pcs, Manual |
| Tow Hitch | 50 mm Ball / 70 mm Ring |
| Working Temperature | -35°C-60°C |
| Battery Charging | Solar/ Mains |
| Charging Time | 17 Hours |
| Running Time | 19 hours with 2 kW load, 47 hours with 0.8 kW load |
| Optional | Generator, Wind Turbine, Lithium Battery |
| Transport Dimensions | 3000*2350*2400 mm |
| Operating Dimensions | 6500*7000*2400 mm |
| Gross Weight | 2400 KG |
| Optional | Inverter Power 1KW-5KW |
| AC Battery Charger | Optional |
