10.24kwh/890w solar

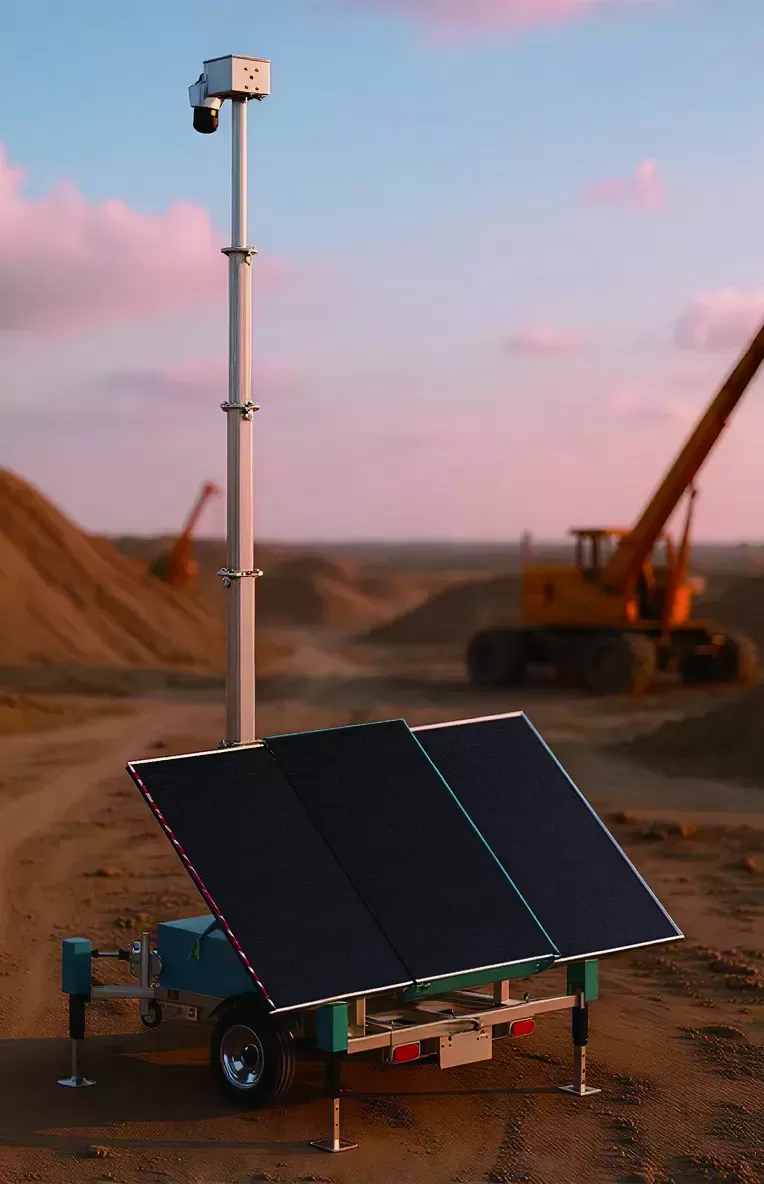

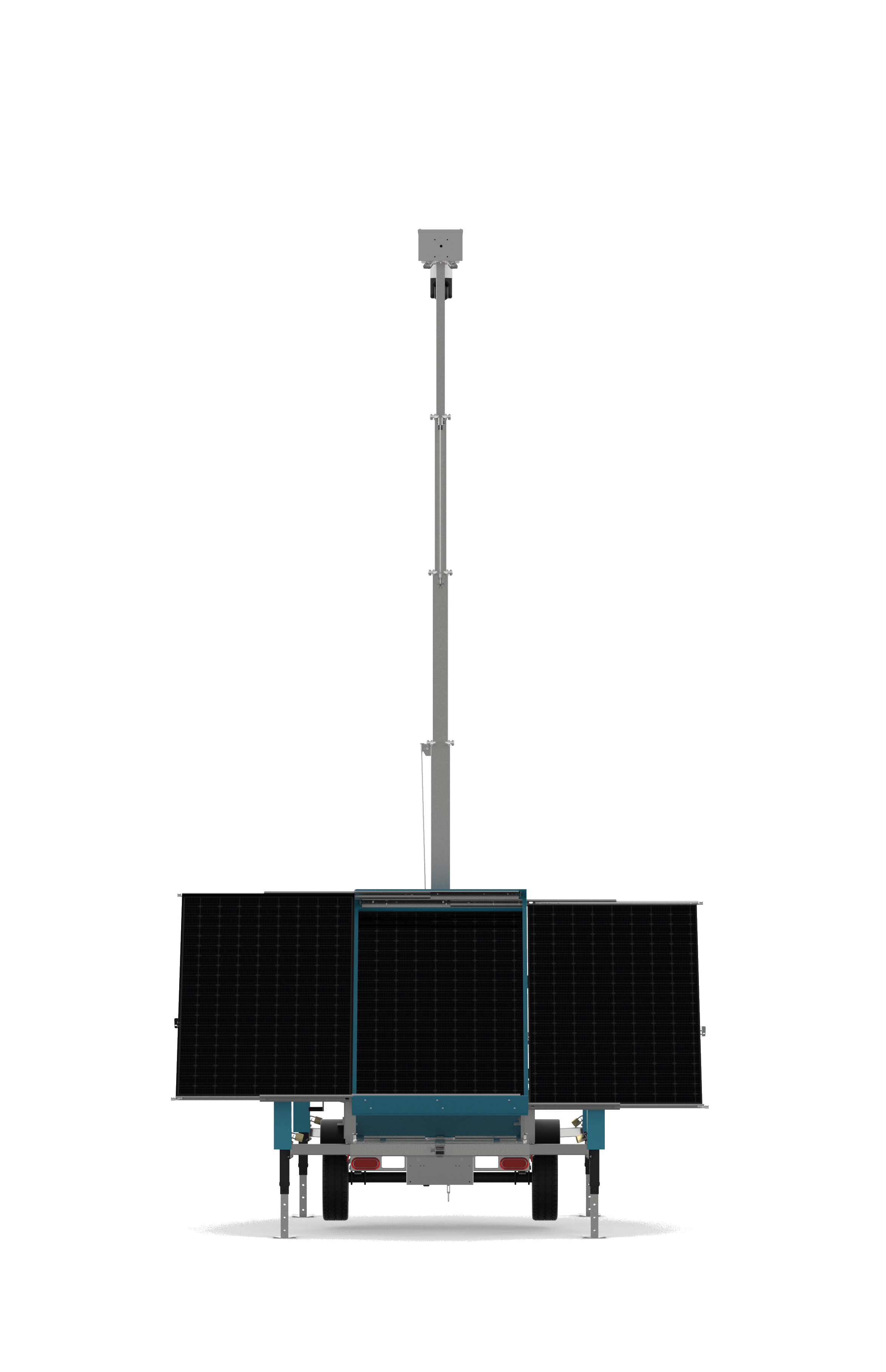

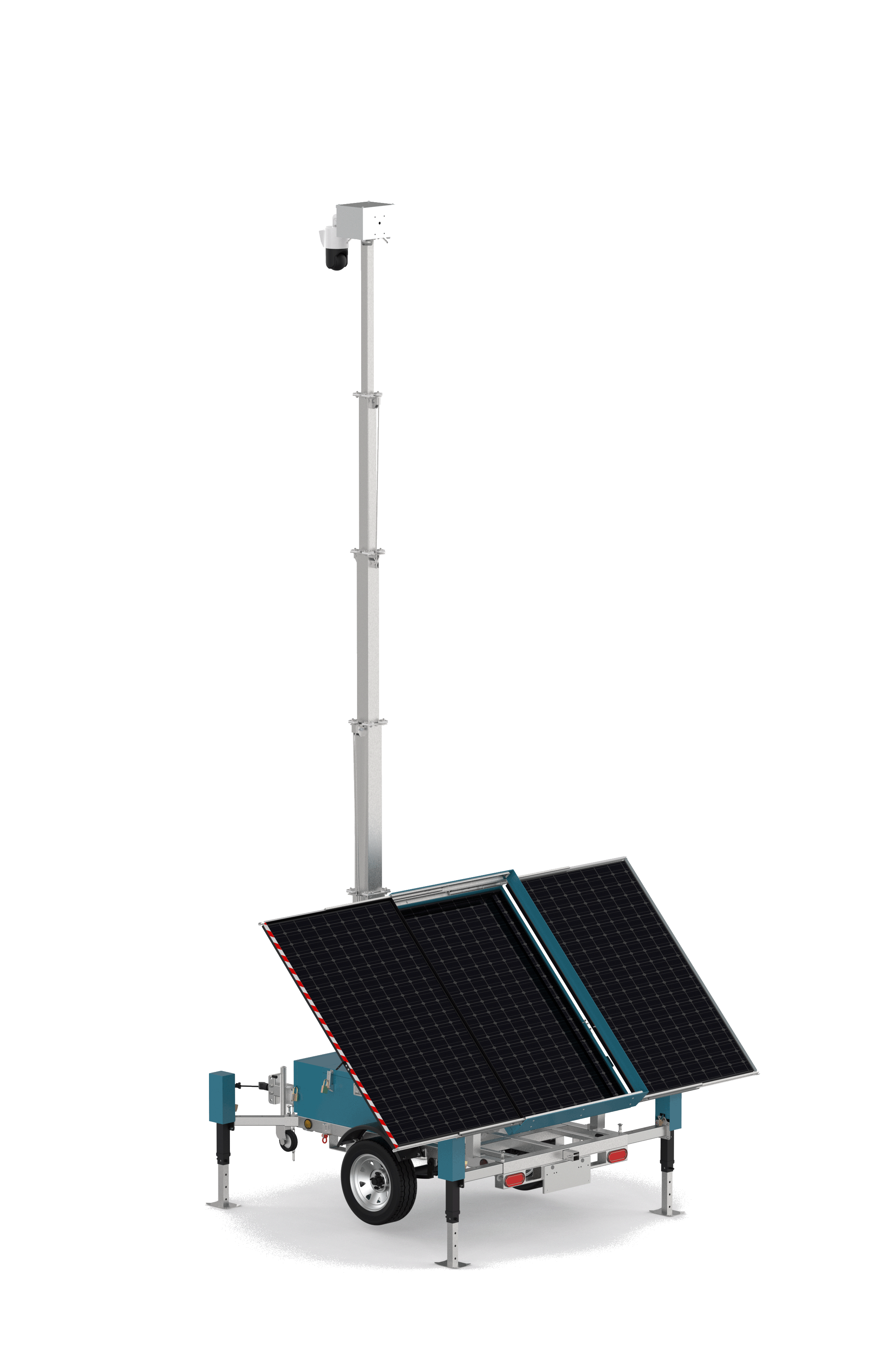

Solar security tower
The ST1305 is engineered for heavy-duty use, offering powerful LED lighting and a strong energy-efficient solar system. It’s ideal for large outdoor projects, ensuring continuous illumination with minimal maintenance.
| System Voltage | DC51.2V |
| Solar Controller | Victron MPPT60A |
| IP level | IP65 |
| Charging mode | Solar energy |
| Charging time for PV panel | 10 hours |
| Working hours | 63-117hours |
| Warranty for the whole trailer | 5 years |
| Monitor rotation Angle | Manual Rotation 340 degree (horizontal) |
| Solar Panel | Monocrystalline, 3*435W |
| Certificates | CE |
| Battery Type | LiFePO4 |
| Original battery specification | 2*100Ah 51.2V |
| Original battery capacity | 10.24/KWh |
| Adjustable height | 7.5M |
| Lifting type | Manual |
| Maximum speed wind | 117KM/H |
| Materials&Surface Treatment | Steel&anti-corrosion(Hot Galvanising) |
| Trailer Hook | 50mm Ball/70mm Ring |
| Trailer Speed | 80km/h |
| Tire | 13 inches |
| Axle | Single |
| Stowed Dimension | 2200*1600*2500 mm |
| Deployed Dimension | 3000*3400*8000 mm |
| Weight | 1.1T |
| Loading qty | 40HQ:14pcs |
