10.24kwh/1305w solar
Medium solar light vehicel

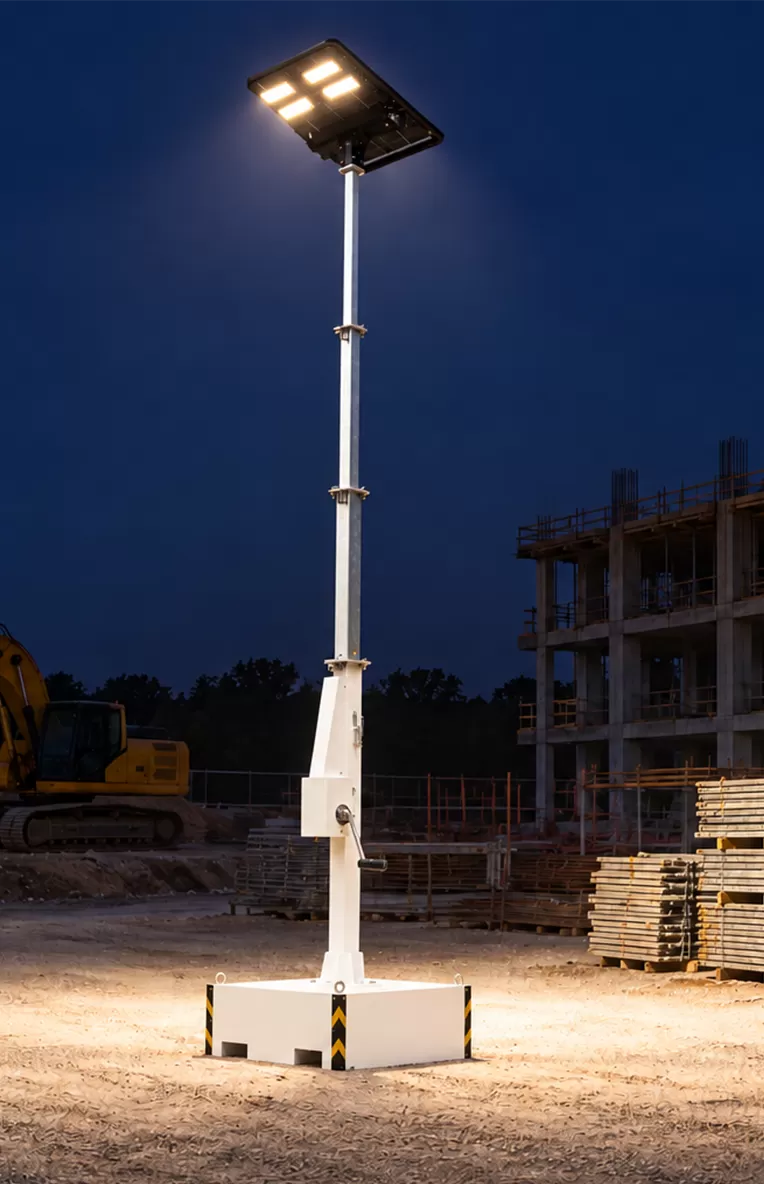

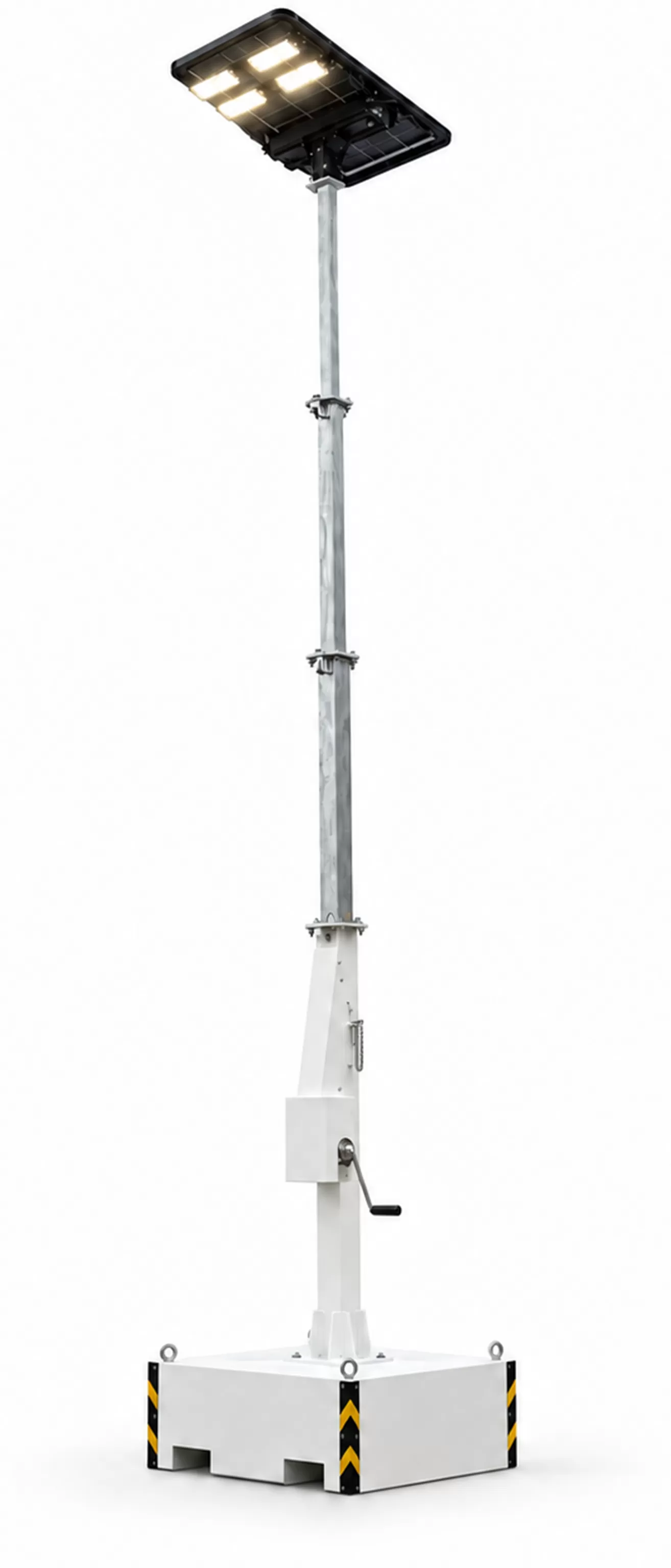

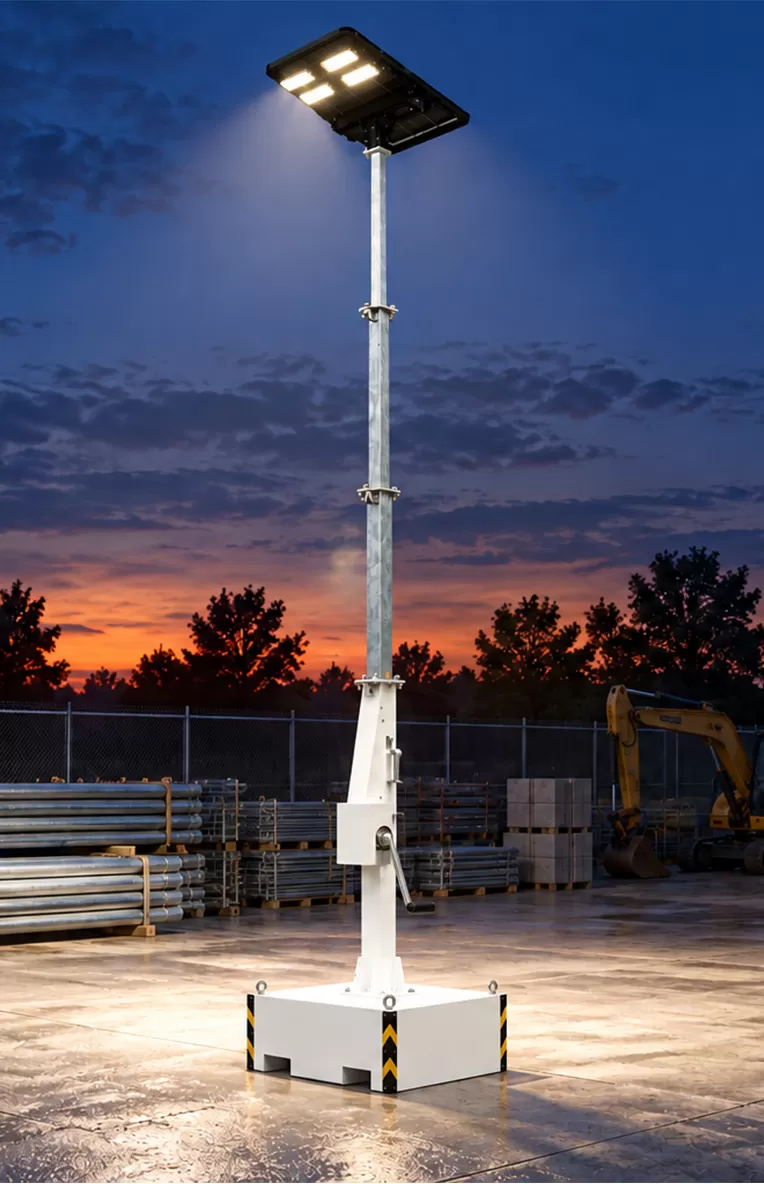

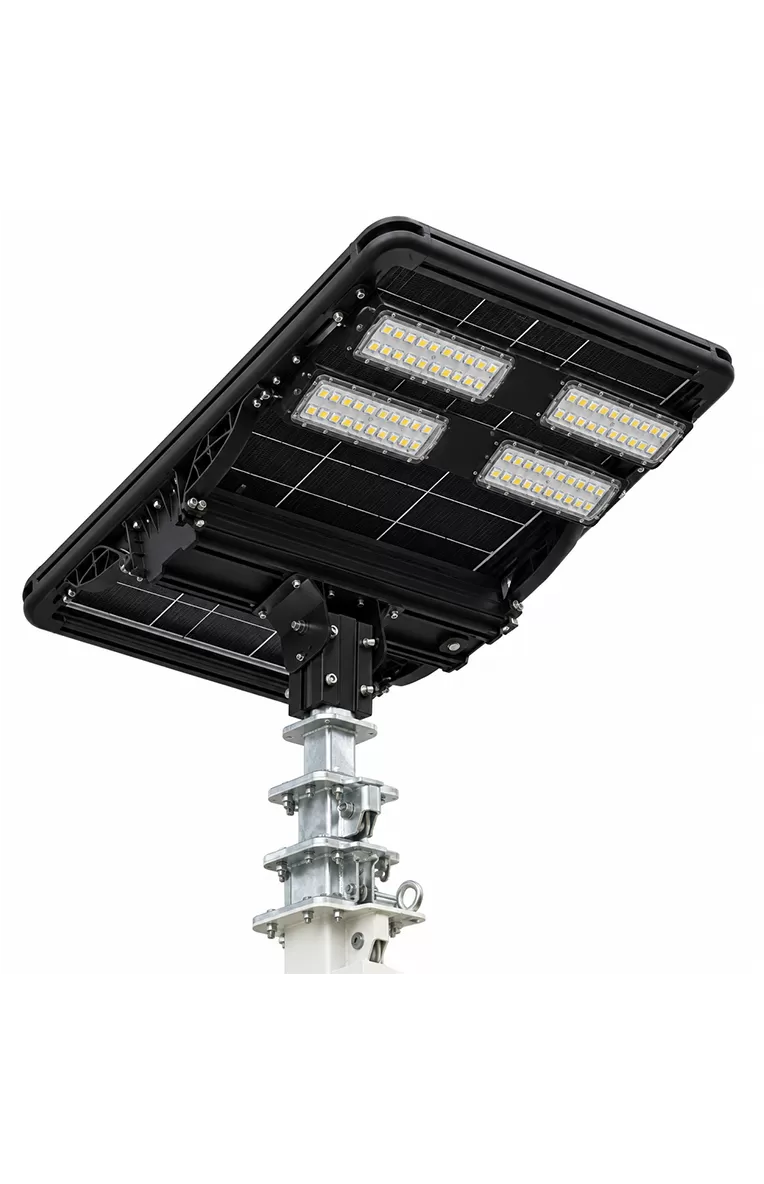

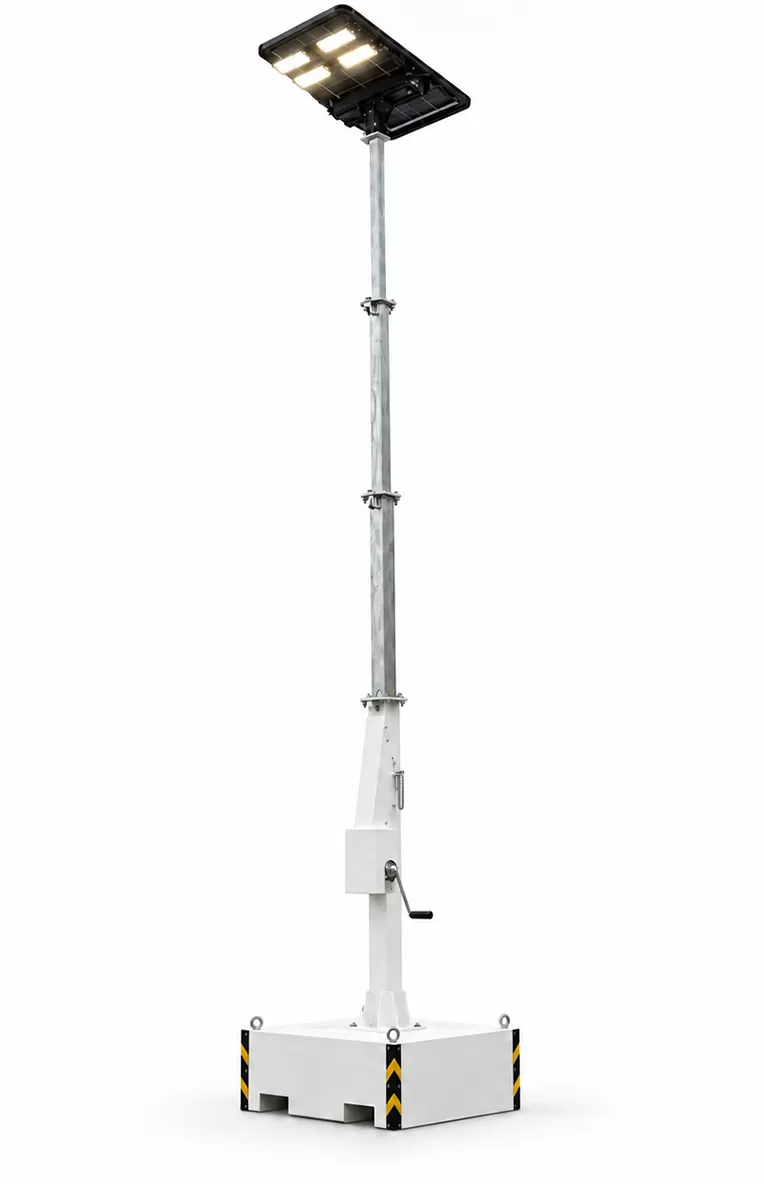

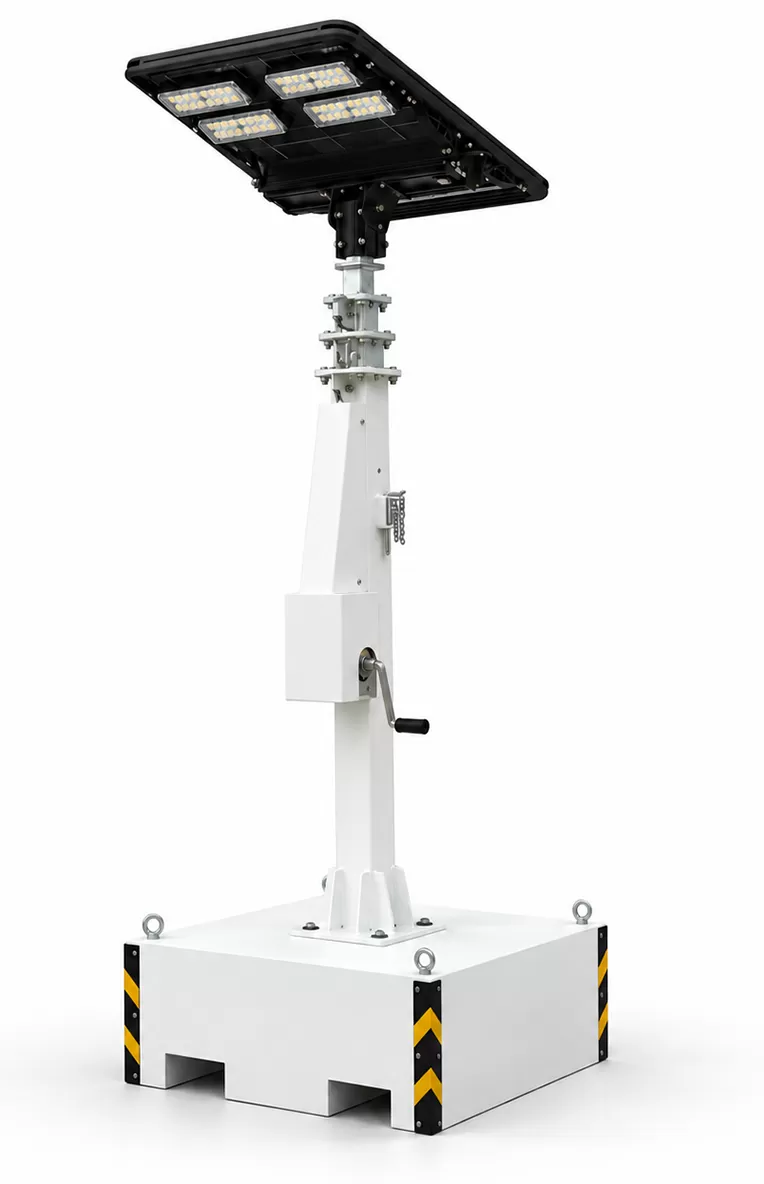

The VG6ML mobile solar light tower provides solar-powered LED lighting for construction sites, equipment storage yards, temporary work areas and remote locations. Its integrated lighting head combines a solar panel with LED modules, supported by LiFePO4 battery storage and MPPT charging. A four-section square mast with manual winch lifting allows height adjustment, while the steel skid base includes forklift pockets for relocation between sites.
LED Wattage | 70W |
Voltage (V) | DC24V system |
Efficacy (Lm/W) | 200lm/W |
CCT | 4000K |
Lumen Output (lm) ±5% | 14000lm |
Solar Panel (Wp) | 18V 130Wp |
Solar Charging Time | 4.5 hours (Peak Sun Hour Per Day) |
Controller Model | Lumiax - MPPT |
Battery Type | LiFePO4 type |
Capacity | 12.8V 1152Wh |
Extended Height | 6100MM |
Retracted Height | 2050MM |
Mast Material | Steel Q235, Thickness 2.5MM |
Mast Shape | Square |
Section Qty | 4 |
Lifting Type | Manual Winch Lifting |
Payload | 60KG |
Wind Resistance | 117KM/H |
Weight | 82KG |
Warranty | 5 Years |
Size | 1000*1000*400MM |
Material | Steel Q235, Thickness 2.5MM |
Weight | 108KG |
Surface treatment | Powder coating |
20GP | 30 Units |
40HQ | 64 Units |
