Solar monitoring tower

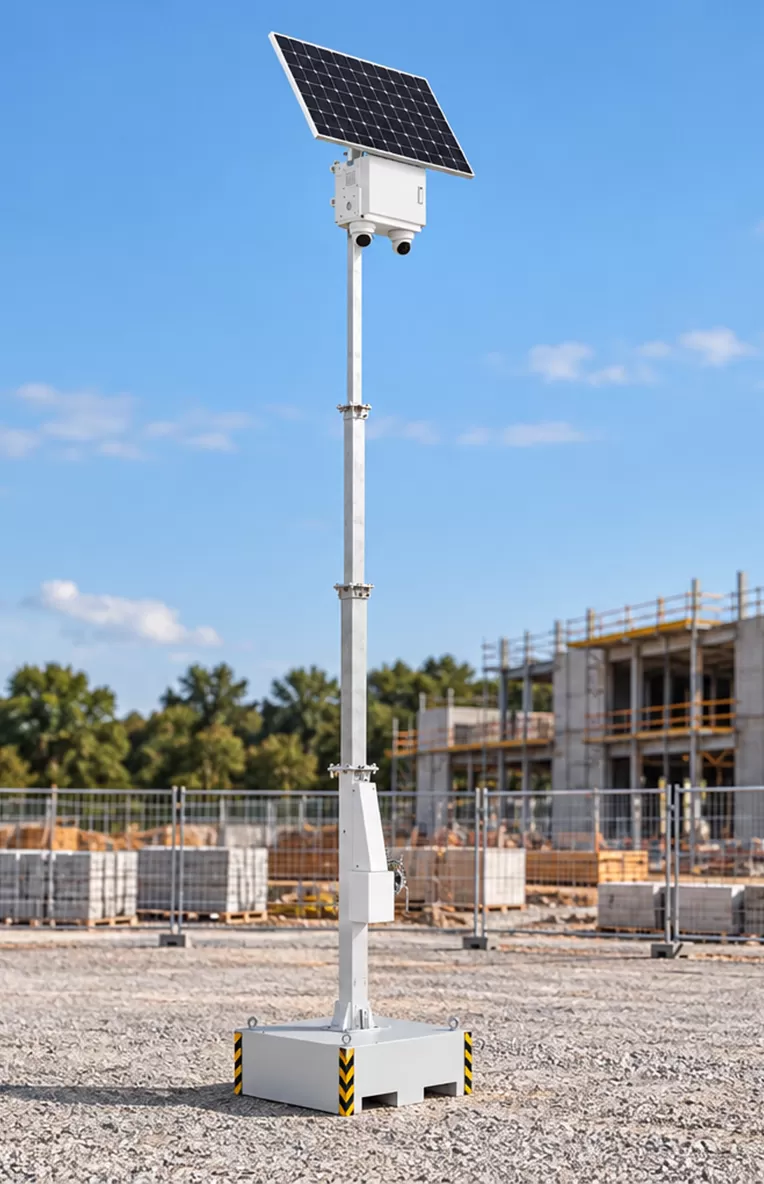

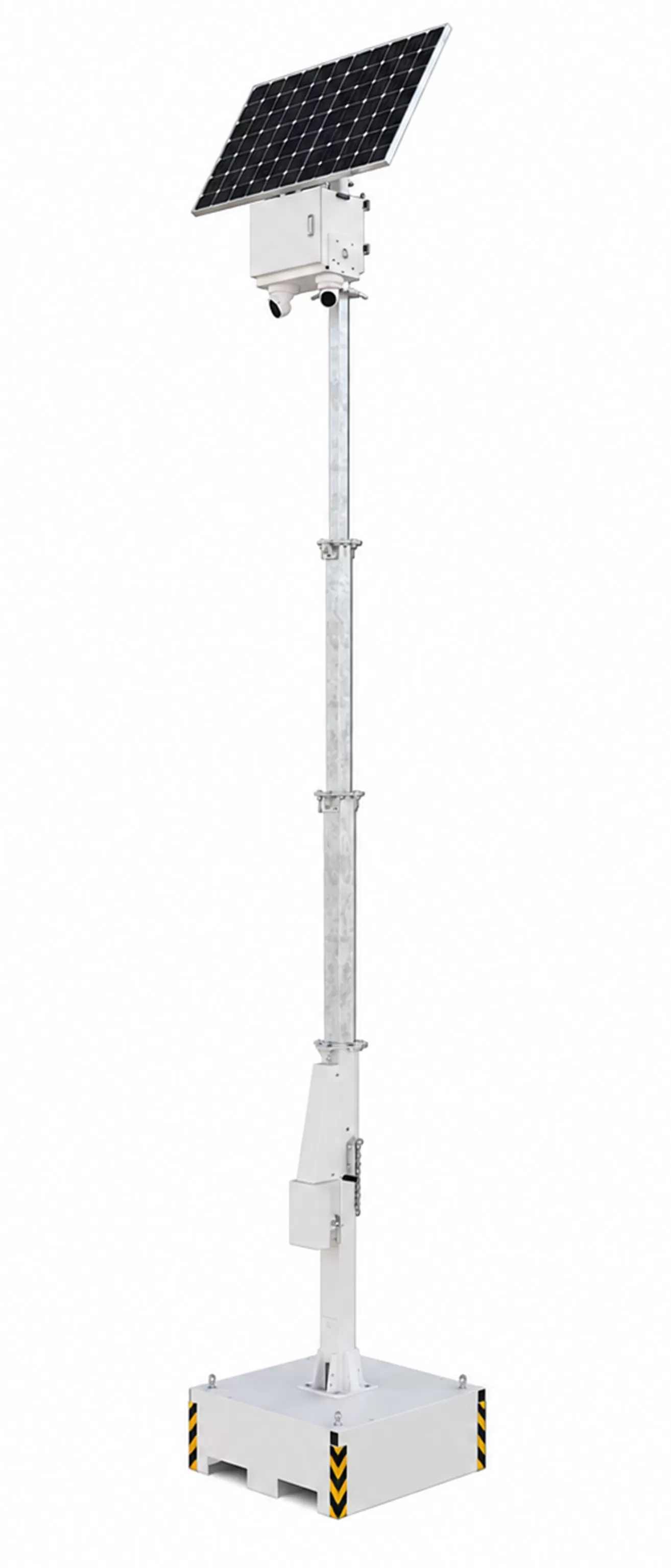

The VG6MS mobile solar surveillance tower provides a compact solar power platform for temporary site monitoring. Its 250 W monocrystalline solar panel, EPEVER MPPT controller and 1.28 kWh LiFePO4 battery support off-grid monitoring equipment. A four-section square mast with manual winch lifting and a forklift-compatible skid base make it suitable for construction sites, equipment storage yards and remote work areas.
Voltage (V) | DC25.4V system |
Controller Model | EPEVER MPPT Controller |
Solar Panel | 250W (1*250W), Monocrystalline Silicon |
Battery Type | LiFePO4 type |
Battery Specification | 25.6V, 50AH |
Battery Capacity | 1280Wh |
Solar Charging Time | 5 hours |
Running hours | 45 Hours @ 30W |
Extended Height | 6100MM |
Retracted Height | 2050MM |
Mast Material | Steel Q235, Thickness 2.5MM |
Mast Shape | Square |
Section Qty | 4 |
Lifting Type | Manual Winch Lifting |
Payload | 60KG |
Wind Resistance | 117KM/H |
Weight | 82KG |
Warranty | 3Years |
Size | 1000*1000*400MM |
Material | Steel Q235, Thickness 2.5MM |
Weight | 108KG |
Surface treatment | Powder coating |
20GP | 25 Units |
40HQ | 60 Units |
